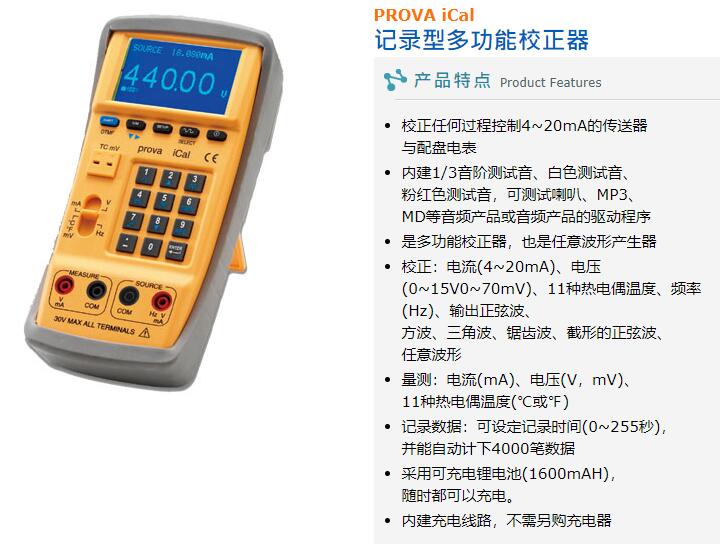

泰仕PROVA iCal記錄型多功能校正器
?電氣規格( 23℃ ± 5℃ , 電源開啟后10 分鐘 )
mA 輸出（Vopen＞15V）?
|
范圍
|
分辨率
|
讀值誤差
|
|
-4mA to -0.005mA
|
1uA
|
+/-0.03% +/- 5dgts
|
|
0.005mA to 4mA
|
1uA
|
+/-0.03% +/- 5dgts
|
|
4mA to 20mA
|
1uA
|
+/-0.03% +/-3dgts
|
|
20mA to 24mA
|
1uA
|
+/-0.03% +/-5dgts
|
V 輸出（最大負載1mA，短路保護＜100mA）?
|
范圍
|
分辨率
|
讀值誤差
|
|
-3V to -0.005V
|
0.001V
|
+/-0.03% +/-5dgts
|
|
0.005V to 10V
|
0.001V
|
+/-0.03% +/-5dgts
|
|
10V to 15V
|
0.001V
|
+/-0.03% +/-5dgts
|
mA量測?
|
范圍
|
分辨率
|
讀值誤差
|
|
-4mA to -0.005mA
|
1uA
|
+/-0.03% +/- 5dgts
|
|
0.005mA to 4mA
|
1uA
|
+/-0.03% +/- 5dgts
|
|
4mA to 20mA
|
1uA
|
+/-0.03% +/-3dgts
|
|
20mA to 24mA
|
1uA
|
+/-0.03% +/-5dgts
|
V 量測?
|
范圍
|
分辨率
|
讀值誤差
|
|
-3V to -0.005V
|
0.001V
|
+/-0.03% +/-5dgts
|
|
0.005V to 10V
|
0.001V
|
+/-0.03% +/-5dgts
|
|
10V to 24V
|
0.001V
|
+/-0.03% +/-5dgts
|
?若mA（量測）、V（量測）的讀值小于5位，顯示值則為0。?
頻率輸出（10Vpp，零位點0V，方波，占空比＝50%）?
|
范圍（Hz）
|
輸入分辨率
|
誤差
|
|
0.3 to 99.999
|
0.1Hz
|
0.002Hz
|
|
10.00 to 999.99
|
0.1Hz
|
0.02Hz
|
|
1000.0 to 9999.9
|
0.1Hz
|
0.2Hz
|
|
10000 to 20000
|
1Hz
|
2Hz
|
?峰對峰值電壓（Vpp，0.3~20KHz，50%占空比，正弦波，零位點0V）?
|
范圍（V）
|
分辨率
|
讀值誤差
|
|
0.1 to 20V
|
0.001V
|
5% +/- 0.3V
|
?非正弦波峰對峰值電壓（Vpp，0.3~20KHz，零位點0V）?
|
范圍（V）
|
分辨率
|
讀值誤差
|
|
0.1 to 20V
|
0.001V
|
6% +/- 0.4V
|
?峰對峰值電壓（Vpp，0.3~20KHz，50%占空比，方波，零位點0V）?
|
范圍（V）
|
分辨率
|
讀值誤差
|
|
1 to 20V
|
0.001V
|
6% +/- 0.4V
|
?零位點（Offset）偏移（最大Vpp＜20V）?
|
范圍
|
分辨率
|
讀值誤差
|
|
-5V to 5V
|
0.001V
|
5% +/-0.5V +/-5%xVpp
|
?占空比（Duty Cycle）（%，方波，10 Vpp，0.3~20KHz）?
|
范圍
|
分辨率
|
Vpp的上升時間
|
Vpp的下降時間
|
|
0 to 100%
|
1%
|
10μS max，
5μS typical
|
15μS max，
7.5μS typical
|
?DTMF (Hz)?
|
范圍(Hz)
|
分辨率
|
讀值誤差
|
|
0.3 to 99.999
|
0.1Hz
|
0.002Hz
|
|
10.00 to 999.99
|
0.1Hz
|
0.02Hz
|
|
1000.0 to 9999.9
|
0.1Hz
|
0.2Hz
|
|
10000 to 20000
|
1Hz
|
2Hz
|
DTMF (%)?
|
范圍
|
分辨率
|
讀值誤差
|
|
0%~100%
|
1%
|
5%
|
?DTMF (Phase Angle)?
|
范圍(度)
|
分辨率
|
讀值誤差
|
|
0~360
|
1度
|
100μS+1度
|
?DTMF (Vpp，F1=F2，，%1=%2 ，Phase1=Phase2)?
|
范圍
|
分辨率
|
讀值誤差
|
|
5V~20V
|
0.001V
|
10% +/-0.6V
|
?DTMF (Offset，F1=F2，，%1=%2 ，Phase1=Phase2)?
|
范圍
|
分辨率
|
讀值誤差
|
|
-5V~5V
|
0.001V
|
10% +/-0.6V +/-5%xVpp
|
?
溫度，熱電偶線（輸出及量測，分辨率0.1C&0.1F，內部溫度補償，
不含熱電偶線的誤差，插入溫度線后3分鐘）???
|
?
|
°C
|
°F
|
|
范圍
|
誤差
|
范圍
|
誤差
|
|
K
|
-200 to -150
|
2.0
|
-382 to -238
|
3.6
|
|
-150 to 0
|
1.2
|
-238 to 32
|
2.1
|
|
0 to 1000
|
0.8
|
32 to 1832
|
1.4
|
|
1000 to 1370
|
1.2
|
1832 to 2498
|
2.1
|
|
J
|
-200 to -150
|
2.0
|
-382 to -238
|
3.6
|
|
-150 to 0
|
1.0
|
-238 to 32
|
1.8
|
|
0 to 1050
|
0.7
|
32 to 1922
|
1.2
|
|
E
|
-200 to -150
|
1.5
|
-382 to -238
|
2.7
|
|
-150 to 0
|
0.9
|
-238 to 32
|
1.6
|
|
0 to 850
|
0.7
|
32 to 1562
|
1.2
|
|
T
|
-200 to -150
|
1.5
|
-382 to -238
|
2.7
|
|
-150 to 0
|
1.2
|
-238 to 32
|
2.1
|
|
0 to 400
|
0.8
|
32 to 752
|
1.4
|
|
R
|
0 to 500
|
1.8
|
32 to 932
|
3.2
|
|
500 to 1760
|
1.5
|
932 to 3200
|
2.7
|
|
S
|
0 to 500
|
1.8
|
32 to 932
|
3.2
|
|
500 to 1760
|
1.5
|
932 to 3200
|
2.7
|
|
N
|
-200 to 0
|
1.5
|
-328 to 32
|
2.7
|
|
0 to 1300
|
0.9
|
32 to 2372
|
1.6
|
|
L
|
-200 to 0
|
0.9
|
-328 to 32
|
1.6
|
|
0 to 900
|
0.7
|
32 to 1652
|
1.2
|
|
U
|
-200 to 0
|
1.1
|
-328 to 32
|
1.9
|
|
0 to 600
|
0.7
|
32 to 1112
|
1.2
|
|
B
|
600 to 800
|
2.2
|
1112 to 1472
|
3.9
|
|
800 to 1000
|
1.8
|
1472 to 1832
|
3.2
|
|
1000 to 1820
|
1.4
|
1832 to 3308
|
2.5
|
|
C
|
0 to 1800
|
1.0
|
32 to 3272
|
1.8
|
|
1800 to 2310
|
1.5
|
3272 to 4190
|
2.7
|
|
mV
|
-10mV to 70mV
|
0.05mV
|
-10mV to 70mV
|
0.05mV
|
?
一般規格︰?
|
AC變壓器
|
AC 110V 或 220V，50/60Hz 輸入; DC 15V / 0.5A 輸出
|
|
尺寸
|
214.0 (L) x 98.7(W) x 56.0(H) mm, 8.4″ (L) x 3.9″ (W) x 2.2″ (H)
|
|
重量
|
650g / 22.9oz (含電池)
|
|
操作環境
|
0°C?~ 50°C, 85% RH
|
|
儲存環境
|
-20°C?~ 60°C, 75% RH
|
|
配件
|
手提箱x1, 使用者手冊x1, AC變壓器x1, USB通訊線x1,
充電式鋰電池 (11.1V/ 1600mAh) x1, K-type熱電偶線 (雙插頭) x1, 軟件光盤x1, 軟件手冊x1, 鱷魚夾x2 (黑及紅),
測試棒x2 (黑及紅)
|
